A Network Topology Visualization System with Web-Based Information Visualization

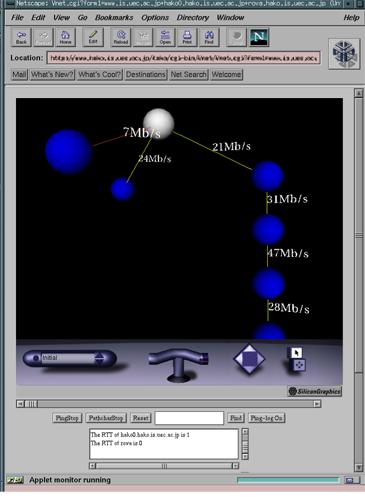

The system obtains network topology information such as network routing, RTT(Round Trip Time) and bandwidth using usual system commands, and visualizes the topology based on these information in VRML browser on a WWW client. Moreover, the system automatically stores the information logs, and exhibit the change of topology to users. The system enables users to grasp the topology information from one server to arbitrary nodes with simple operations.
Research Papers:
- Hideaki KANAI, Takayuki TSUJI and HAKOZAKI: Construction of a Network Topology Visualization System with Web-Based Information Visualization, IPSJ SIG Note 98-DSM-12¡¤pp.1-6¡Ê1998-11)(in Japanese)
