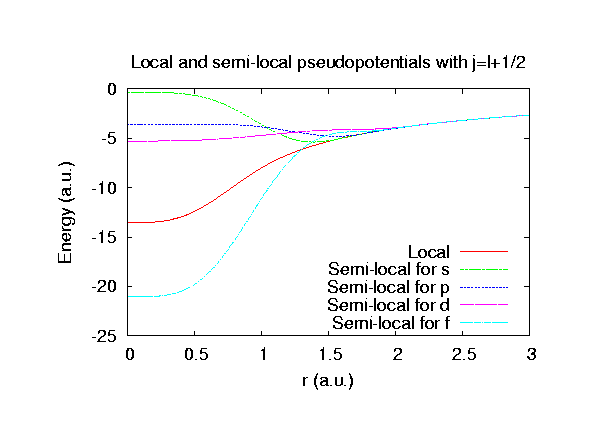

Fully relativistic pseudopotentials

Fully relativistic pseudopotentials generated by
the MBK (PRB 47, 6728 (1993)) scheme within LDA (CA13) and GGA (PBE13) which contain
a partial core correction and fully relativistic effects including spin-orbit coupling.

###
Pseudo-atomic orbitals

The number below the symbol means a cutoff radius (a.u.) of the confinement
potential. These file includes fifteen radial parts for each angular
momentum quantum number l (=0,1,2,3). The basis functions were generated by ADPACK, and
never optimized by OpenMX.
Since Xe_CA13.vps and Xe_PBE13.vps include the 5s and 5p state (8 electrons)
as the valence state, the minimal basis set is Xe*.*-s1p1.

###
Benchmark calculations by the PBE13 pseudopotential

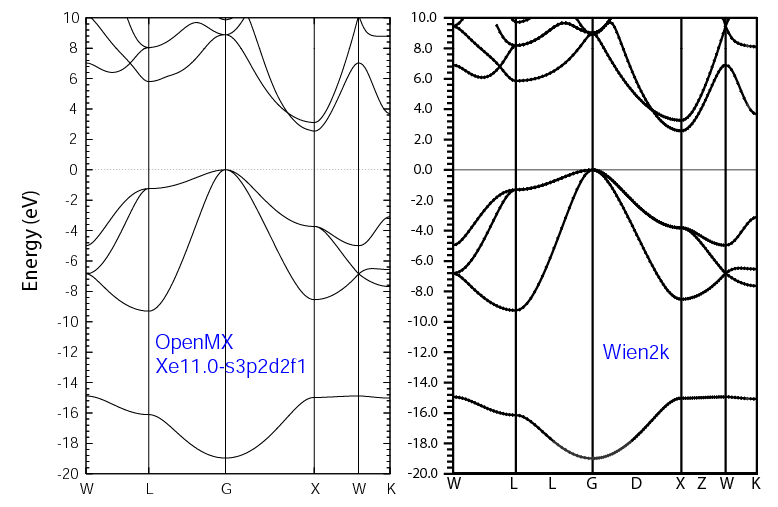

** (1) Calculations of the band dispersion in the fcc structure,**
where the non-spin polarized collinear calculation with the lattice constant of 4.5 Ang.
was performed using Xe_PBE13.vps and Xe11.0-s3p2d2f1, and the origin of the energy is
taken to be the top of the valence band.
The input file used for the OpenMX calculations can be found at
Xefcc-Band.dat .
For comparison the result by the Wien2k code is also shown, where
the calculation was performed by default setting in the Ver. 9.1 of Wien2k
except for the use of R_{MT} x K_{MAX} of 12.
