Predicting Superconductor Crystal Structures with Computer Simulations

Researchers discover a new hydrogen compound crystal structure as a likely candidate for achieving superconductivity at high temperatures

The low temperatures required to maintain superconductivity have led to the development of hydrogen-containing compounds (metal hydrides) that can achieve superconductivity at room temperature. Researchers from Japan Advanced Institute of Science and Technology have been using computer simulations to predict various metals that can be combined with hydrogen to form potential superconductors that require inexpensive cooling solutions. Their simulations can provide information on crystal structures and assist in the development of high temperature superconductors.

Superconductivity refers to the loss of electrical resistance of a material and requires extremely low temperatures (< -200°C) in order to persist. This low temperature, otherwise known as the transition temperature, has been a limiting factor in the application of superconductors and finding materials that can display superconductivity at higher temperatures has become an important research objective worldwide.

A breakthrough has been made with hydrogen-rich compounds (called hydrides) containing rare earth or alkaline metals, which display room temperature superconductivity at high pressures (100-200 GPa). These metal hydrides have cage-like structures of hydrogen atoms stacked on top of each other enabling them to withstand the high pressures required for the superconductivity phenomenon. Many of the crystal structures and compositions for these hydrides have been predicted by combining various binary metal hydrides together.

Now, in a study published in The Journal of Physical Chemistry on January 26, 2022, a group of researchers led by Professor Ryo Maezono from Japan Advanced Institute of Science and Technology (JAIST) has used a supercomputer to make similar predictions for viable high-temperature ternary metal hydride superconductors containing Magnesium (Mg), an alkaline metal, and Scandium (Sc), a rare earth element. "MgH2 and ScH2 are known to be stable phases at ambient pressure. Therefore, MgH2 and ScH2 can be used to chemically synthesize the ternary Mg−Sc−H compounds", explains Prof. Maezono.

For their search, the researchers initially started out with certain Mg-Sc-H compounds (MgSc3Hx, MgSc2Hx, MgScHx, Mg2ScHx, and Mg3ScHx, where x = 2−12, 14, 16, and 18). Starting with random initial structures, they used the supercomputer to determine possible combinations and crystal structures that would result in a valid superconductor in a pressure range of 100-200 GPa.

In order to achieve superconductivity, the predicted compound must meet certain conditions: it must be thermodynamically stable, i.e., it cannot degrade into its elementary components, have a high transition temperature, have a valid synthesis route, and possess a structure capable of withstanding high pressures where the phenomenon takes place. In the simulations, four hydrogen-rich structures were found to meet the criteria: R 3 ¯ m $Fd\bar{3}m$ -MgScH6, C2/m-Mg2ScH10, Immm-MgSc2H9, and Pm 3 ¯ m $Fd\bar{3}m$ -Mg-(ScH4)3.

Out of the crystal structures, R 3 ¯ m $Fd\bar{3}m$ -MgScH6 was found to have the highest transition temperature of (23.3 K) at 200 GPa and 41 K at 100 GPa. The compound was found to possess a hexagonal crystal structure, in which each Mg and Sc atom is surrounded by 14 H atoms (Figure 1). The transition temperature was, however, much lower than that of the binary halide counterparts (LH10 and YH10) and this low temperature was attributed to the low density of states at the Fermi level due to the lower hydrogen content.

Among the metal hydrides, ternary metal hydrides that contain hydrogen bonded to two other metals are promising candidates for low-pressure, room-temperature superconductivity. It was, however, a challenging and time-consuming process to predict the appropriate elements and crystal structure that resulted in a superconducting ternary hydride due to the large number of possible combinations with metals. With the help of supercomputers, researchers are now able to quickly determine potential superconducting candidates. The discovery of the Mg-Sc-H compounds as valid superconductors is the third such prediction for ternary hydrides made by the research group using the computer simulations. "This is the third news with 'Mg/Sc' compounds following the preceding findings with 'La/Y' in December 2021 and 'Y/Mg' in January 2022. New findings are being launched one after another," says Prof. Maezono.

Despite having low transition temperatures, the predicted Mg-Sc-H compounds remain stable at pressures that are lower than those normally observed for high-temperature superconductors. Simulations like these are enabling researchers to understand the contributions of each element towards the superconductivity phenomenon, accelerating the development of high-temperature superconductors.

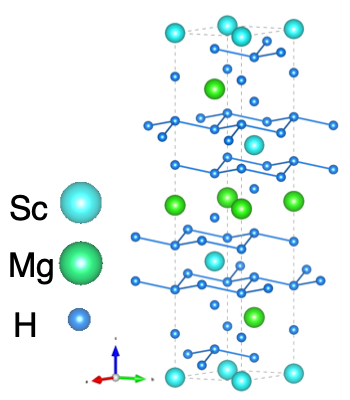

Figure 1. Hexagonal crystal structure for R 3 ¯ m $Fd\bar{3}m$ -MgScH6
Newly discovered crystal structure of the superconductor realizing higher transition temperature.
Image credit: Ryo Maezono from JAIST.


Title of original paper: High-Pressure Mg−Sc−H Phase Diagram and Its Superconductivity from First-Principles Calculations
Journal: The Journal of Physical Chemistry
DOI: 10.1021/acs.jpcc.1c08743

Funding information
The computations in this work have been performed using the facilities of Research Center for Advanced Computing Infrastructure (RCACI) at JAIST.

Dr. Ryo Maezono is grateful for financial support from MEXT-KAKENHI (19H04692 and 16KK0097), FLAGSHIP2020 (Project Nos. hp190169 and hp190167 at K-computer), Toyota Motor Corporation, I−O DATA Foundation, the Air Force Office of Scientific Research (AFOSR-AOARD/ FA2386-17-1-4049; FA2386-19-1-4015), and JSPS Bilateral Joint Projects (with India DST).
